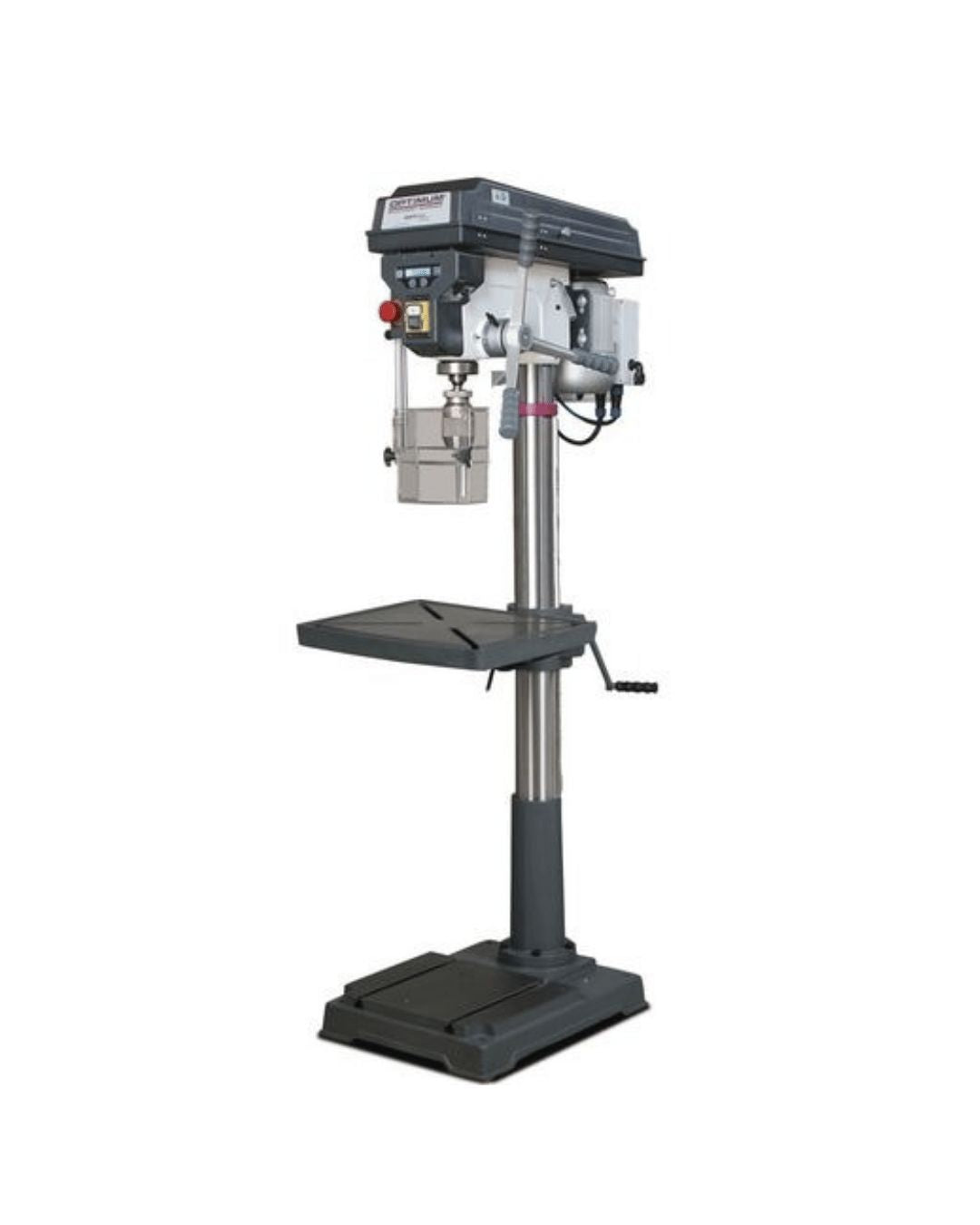

Optimum Bench Drill 415V (D33PRO) Germany | Model: D33PRO

Description

Optimum Bench Drill 415V (D33PRO) Germany | Model: D33PRO Features: Industrial engine Easy to use safety switch according to IP 54 Digital drilling depth and speed indicator integrated in the housing Separate emergency stop impact switch Precision Spindle bore Safety electronics in 24 V DC Guaranteed concentricity measured less than 0.02 mm in the drill quill Drill spindle with precision ball bearings High quality keyless chuck Digital depth gauge Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel V-belt cover with safety switch One piece cast aluminum die-cast quill lever with softgrip handles Large, height-adjustable protective screen with safety switch Heavy version of the entire machine Specifications: Dimensions and weights Column diameter 92 mm Length approx. 915 mm Width/depth approx. 450 mm Height approx. 1705 mm Weight approx. 137 kg Drilling performance Drilling performance steel (S235JR) 30 mm Continuous drilling performance steel (S235JR) 25 mm Drilling table Workspace length 475 mm Workspace width 425 mm T-groove size 14 mm Rotation 360 ° Angle 45 ° Max. distance spindle – drilling table 695 mm Electrical Data Drive motor output 1,1 kW Supply voltage 400 V Mains frequency 50 Hz Machine base Max. distance spindle – machine base 1180 mm Work area length 410 mm Work area width 325 mm Machine base T-groove size 16 mm Machine base T-groove number 2 Machine base T-groove spacing 250 mm Speed range Speed range 120 1810 min¯¹ Number of gears 9 Stufen Spindle Quill stroke 120 mm Spindle chuck MT 4 Reach 254 mm VPE 1

—
**Available SKUs:**
– **Default** — ACH: D33PRO @ S$1187.00
