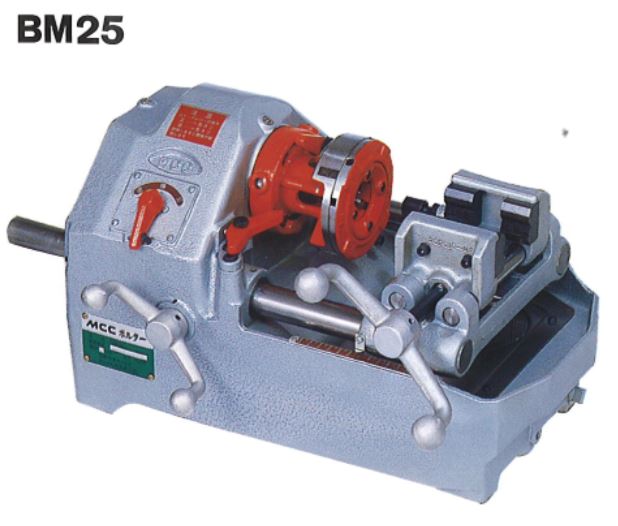

MCC Bolt Threading Machine | Model : BM 25

Description

Features : Die head rotating in both forward and reverse direction One touch changeable die head and easy setting dies High speed and highly efficiency Automatic oiling directly to the dies and bolt through die head during threading operation Die head opens automatically when a desired length of thread is pre-set This machine is specially designed to thread bolts for building usage Specifications : Capacity : BSW Bolt : 5/16″ – 1″ ISO metric Bolt : M8 – M24 Motor : Single Phase 450 W Rotational Speed (no load) : 100 rpm Weight : 32 kg Dimensions (L x W x H) : 515 x 285 x 287 (mm) Accessories : Right Hand Die Head : 5/16″ – 1″ (M8 – M24) – 1 set Right Hand Dies : 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″ – each 1 set Threading Oil 4 litre can – 1 pc Chip Scrapper – 1 pc Spanner for die head – 1 pc Release bar for die head – 1 pc Hex Key 3, 4, 5, 6mm – each 1 pc Carbon Brush – 1 set Machine Cover – 1 pc Tool Box – 1 pc Legs – 1 set

—
**Available SKUs:**
– **Default** — ACH: TM-BM25 @ S$3865.94
