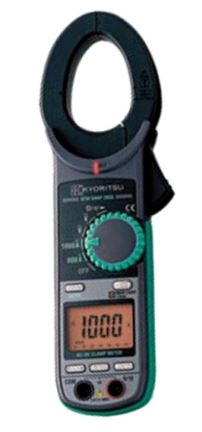

Kyoritsu Ac/Dc Digital Clamp Meter 600A | Model : 2055

Description

Features : Designed to international safety standard IEC61010-1 CAT. IV 600V Measure voltage and current in both very low and high power circuits Non-contact voltage function gives warning to the user on the presence of AC voltage Double moulding for comfort 6039 count with bar graph display Min/Max function Specifications : AC A 0 – 600.0/1000A ±1.5%rdg±5dgt (50/60Hz) ±3.0%rdg±5dgt (40 – 400Hz) DC A 0 – 600.0/1000A ±1.5%rdg±5dgt AC V 6/60/600V Auto Ranging ±1.3%rdg±4dgt (50/60Hz) ±3.0%rdg±5dgt (40 – 400Hz) DC V 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M) Continuity buzzer : Buzzer Sounds at 100Ω Frequency/DUTY : 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9% Conductor size : Ø40mm Safety Standard IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 Power source : R03 (1.5V) (AAA) × 2 Dimensions : 254(L) × 82(W) × 36(D)mm Weight : 310g

—
**Available SKUs:**
– **Default** — ACH: 2055 @ S$280.40
