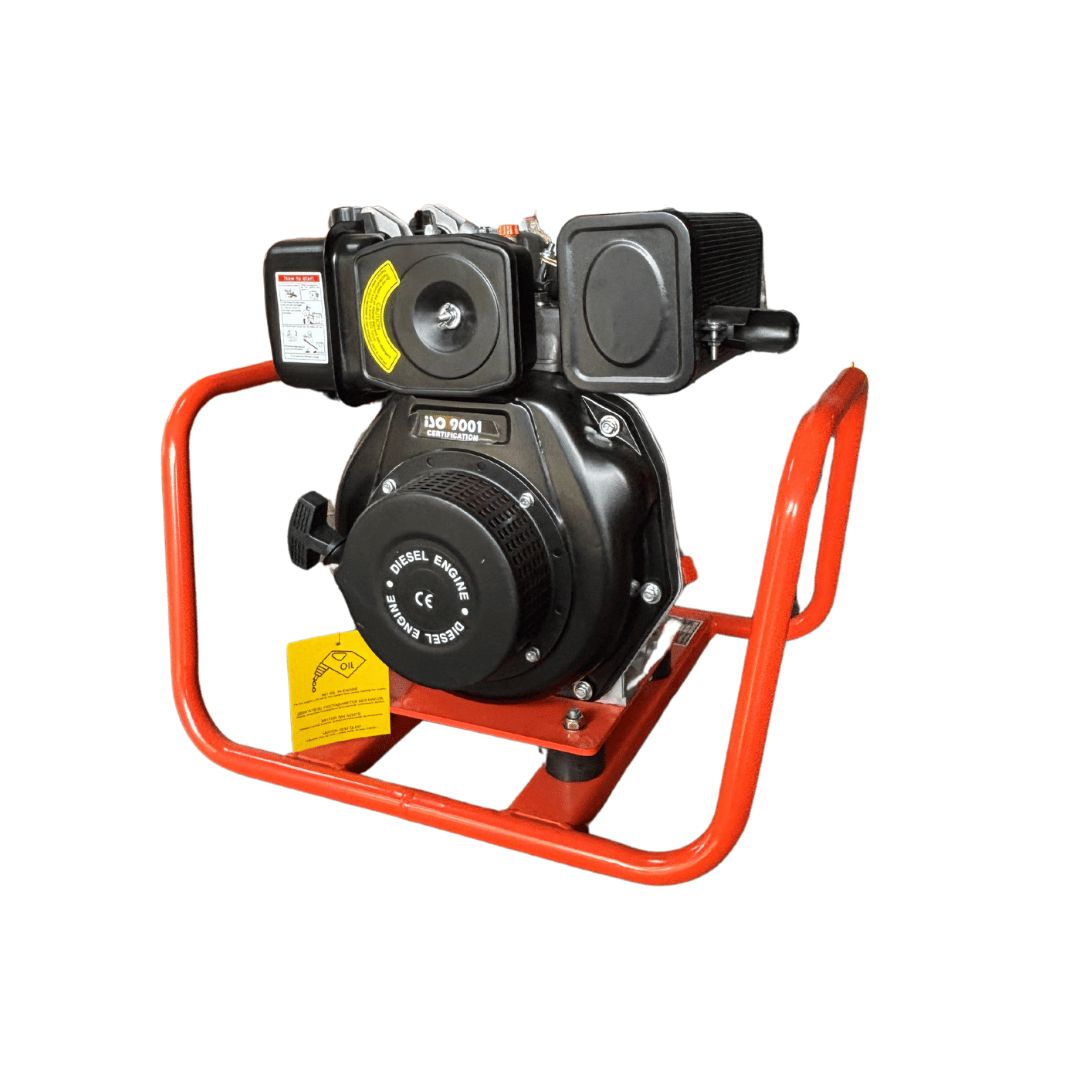

Aiko Diesel Vibrator Engine 178F C/W Fixed Base And Coupling Pin | Model: CV-ZE-5

Description

Aiko Diesel Vibrator Engine 178F C/W Fixed Base And Coupling Pin | Model: CV-ZE-5 Specification: Engine type 178F Power 4.0 kw Type Single-cylinder, vertical, 4-stroke, air-cooled, direct-injection Bore * Stroke (mm) 78 * 62 Displacement (L) 0.296 Normal Speed (rpm) 3000 / 3600 Max. Output (kW) 3.8 / 4.2 Cont. Output (kW) 3.68 / 4 Mean Effective Pressure (kPa) 497 / 450 Fuel Tank Capacity (L) 3.5 Crankshaft Rotation Clockwise (from flywheel end) Cooling Type Forced air-cooled system Lubrication Type Pressure, splash Starting Type Recoil manual start and optional electric start Net Weight (kg) ≤33 (38) Size (mm) 470 × 440 × 510

—
**Available SKUs:**
– **Default** — ACH: CV-ZE-5 @ S$539.55
